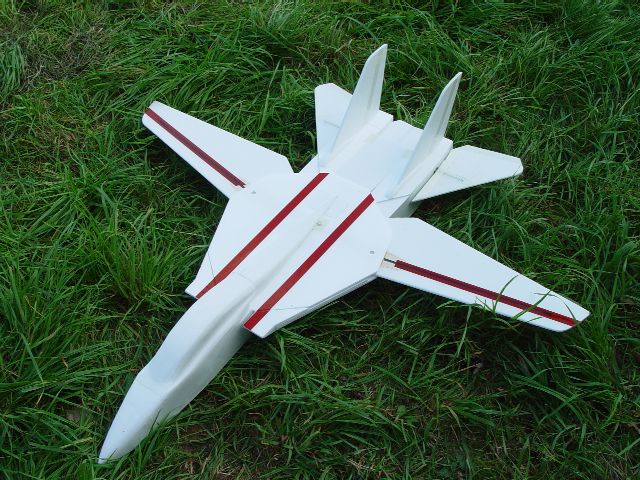

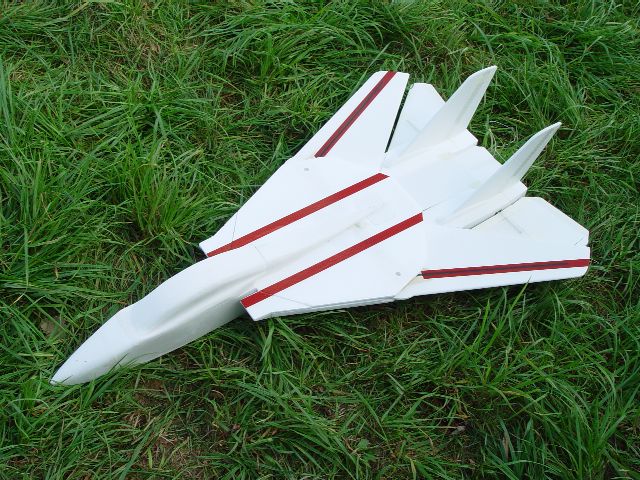

F-14 Tomcat from Senn Modellbau Technical details: Length: 41.34 inches Wing span: 45.28 inches Scale: 1:17.5 Flight weight: starting from 1.764 lbs Video F-14 Tomcat 4,84 MB .wmv file Power: e.g. 2x Wemotec Microfan EDF with Hacker B20-15L

The F-14 is the ideal model for all pilots looking for the exceptional and nevertheless wants to have a lot of fun.

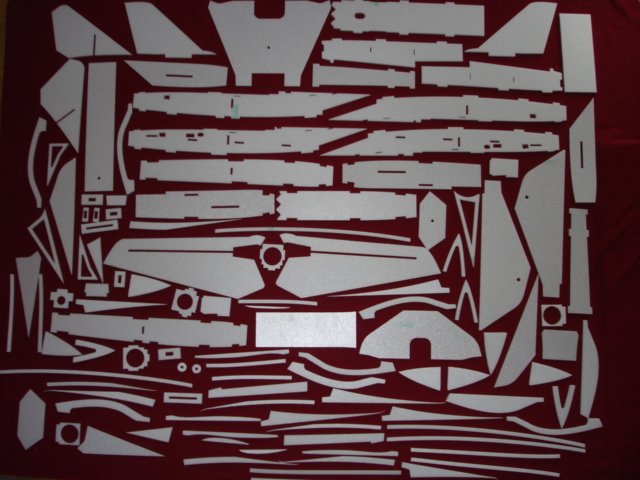

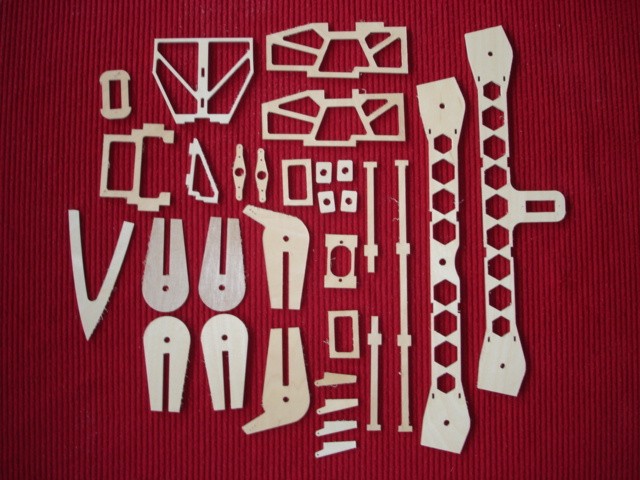

During the construction process a special value was given to the simple structure of the model. Nearly all parts are made of 3 and 6 mm Depron. To reach a proper stability wood is used in addition for exposed parts. Naturally all parts are CNC made and precisely tailored.

*** Left-click on the picture in order to activate XXL-view ***

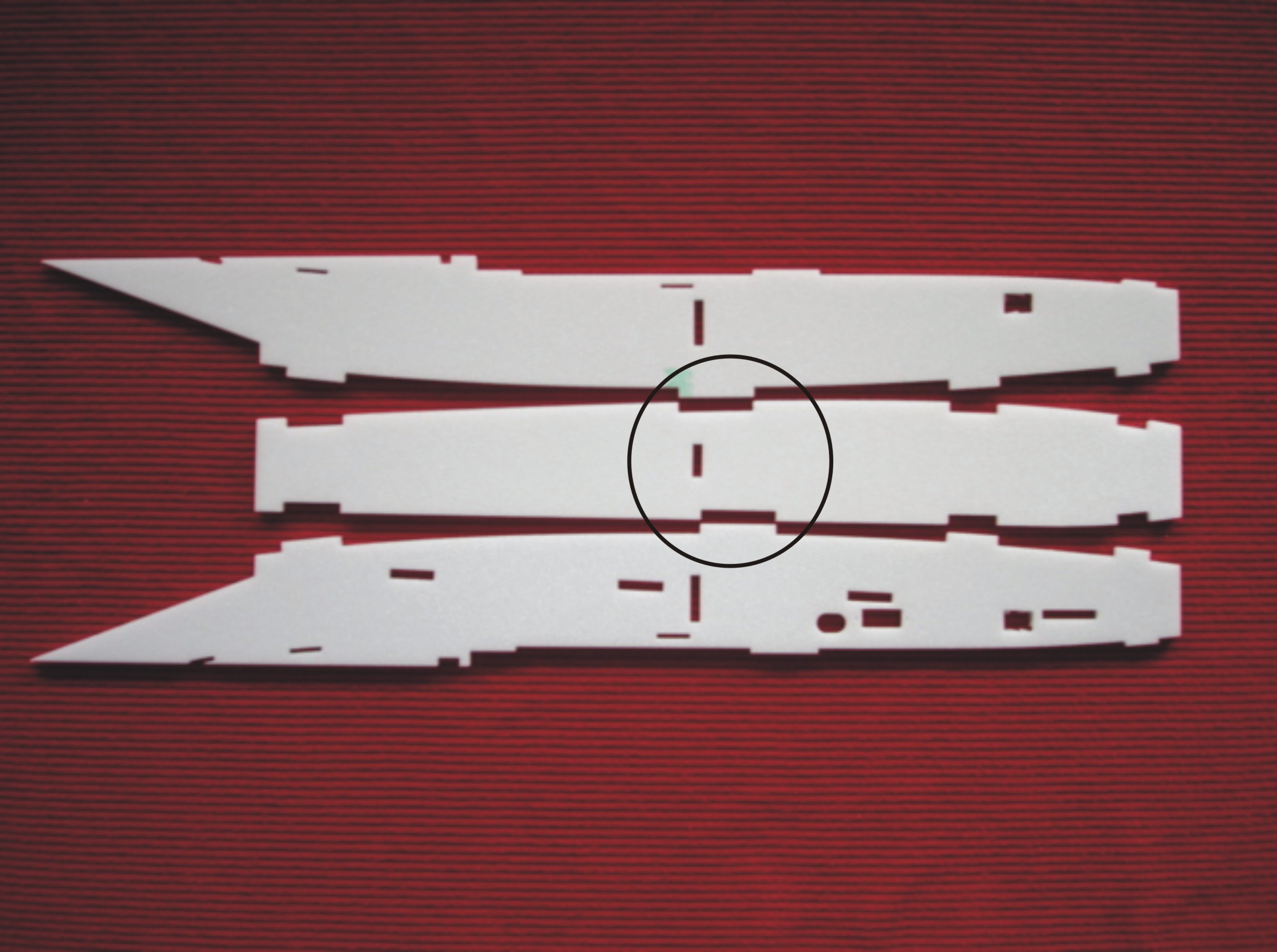

Even though the kit contains a lot of single components, it is easy to put them together. All of them are constructed in a way that it is nearly impossible to assemble them in a wrong way. The fuselage including the air intakes becomes mortised. The mortise dowel joints are individually designed for the single parts and fit together only in one way. Like this it can be ensured, that the different parts can not be mixed up when assembling the model.

The special clou of this small F-14 is that you do not need to do it without variable sweep wing. The sweeping of the wings is carried out by a micro servo (e.g. HS-81MG). The flight properties are very well-balanced for all wing positions. A particularly suitable model to take the opportunity of a short after work flight.

As power plant you can either use a central pusher engine (like an Axi 2212/26 with a 9x6 compression propeller) or two EDFs. Independent on the power plant you are choosing, you will be able to start the model yourself easily by hand.

Price: 119,- EUR ( exclusive shipment )
(Delivery time: approx. 2 weeks)

Push-button actuation set
containing: Modelkit, Hacker Motor A20-28S, MASTER 30-B-Flight Controller, LiPo 2200 HDHE 3S1P, propeller APC 10-7
Set price: 329,- EUR ( exclusive shipment )

EDF set
containing: Modelkit, 2x Hacker Motor B20-12L, 2x MASTER 30-B-Flight, 2x WeMoTec Micro Fan, 1x LiPo 2200 HDHE 4S1P
Set price: on request
